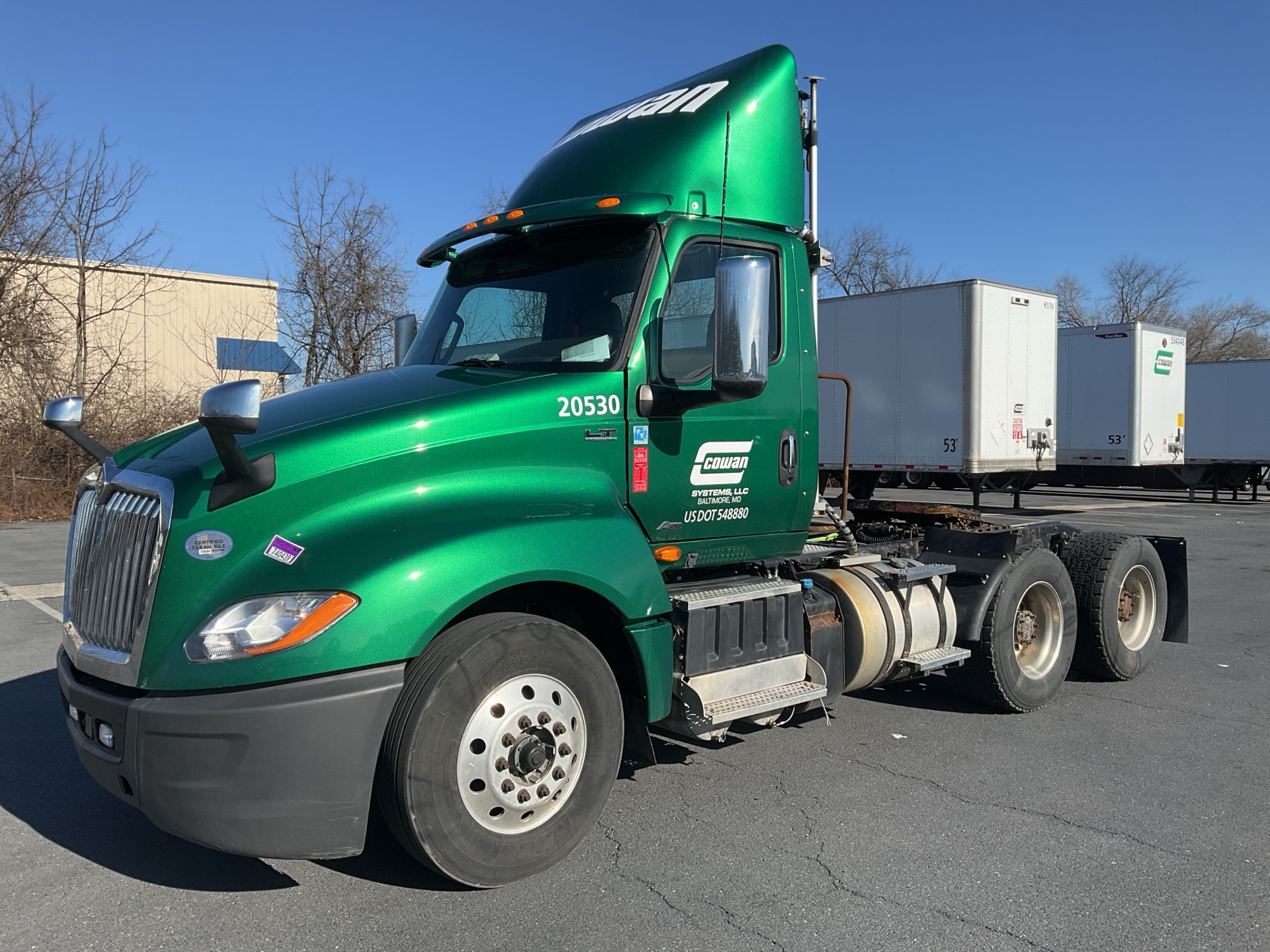

2020 International LT625 Serial: 3HCDZTZR2LL833562

Features

International A26 6 Cylinder Diesel 450 hp Engine, 2020 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, 70 gal Left Fuel Tank 70 gal Right Fuel Tank, Collision Mitigation System, Power Locks, Classic interior, 5991 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton EEO-17F112C 12 Speed Automated Transmission, 12350 lb Front Axle, 38000 lb Rears, Dana D40-155H Drive Axles, 2.79:1 Axle Ratio, 50350 lb GVWR, Air Ride Cab, Aluminum Wheels, 295/75R22.5 Front Tires, 445/50R22.5 Super Singles Rear Tires, Air Ride Suspension, 175 in Wheelbase, Air Sliding 5th Wheel, Dual Fuel Tanks

Featured Specs

Description Rating Details Photo
Odometer (Start) 472326 mi
ECM Miles 472327 ECM mi

General Appearance

Description Rating Details Photo
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN 3HCDZTZR2LL833562
Second Serial Number/VIN Photo
Data Tag
Engine Oil level on Dipstick
Clean Idle Sticker No visible damage
Component Identification Tag
Motor Vehicle Safety Standards Label Yes
Truck Paint and Body Damage Grille paint damaged, Left fender paint damaged, Right fender paint damaged, Right door paint damaged, Cab rear paint damaged, Deidentify
Front Bumper (Exterior and Inner Reinforcement) Left exterior Left exterior damaged Right exterior Right exterior damaged
Color Body Paint Color:, Green
Fairing Roof Air Fairing
Glass No visible damage or missing components
Steps No visible damage or missing components
Grab Rails Cab rear grab rail rusted out
Exterior Lights Tail light panel damaged
Mud Flaps No visible damage or missing components

Model Description

Description Rating Details Photo
Model Modifier
Alternative Fuel Type
Drive Type 6x4
Special Function
Post-Model Description
Post-Features

Brakes / Tires

Description Rating Details Photo
Rear Axle

Engine

Description Rating Details Photo
Engine Details International A26 6 Cylinder Diesel 450 hp Engine, 124KM2Y4529085
Emissions Information 2020 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid
Positive Air Shutoff
Engine Coolant Heater
Emission Label
Engine Data Tag
A/C Compressor In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Starter Operational
Air Compressor Operational, Dripping leak
Fuel System Operational
Exhaust System Rating: GOOD No visible damage or missing components
Diesel Particulate Filter
Radiator Rating: GOOD No visible damage or missing components
Engine Oil Leaks Front cover: Seepage at front cover, Oil cooler: Seepage at oil cooler, Air compressor mounting surface
Fuel Leaks No dripping leaks
Cooling System Leaks No dripping leaks
Coolant Reservoir
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check The engine started and ran.

Cab

Description Rating Details Photo
Spec Details Fuel tank sizes:70 gal Left Fuel Tank 70 gal Right Fuel Tank Collision Mitigation System, Power Locks, Interior level / model:Classic interior Day Cab
Engine Hours 5991 Engine hrs
Air Conditioner Air Conditioner
Cruise Control Cruise Control
Power Windows Power Windows
Auxiliary Brake Type Engine Brake
Transmission Eaton EEO-17F112C 12 Speed Automated Transmission
Differential Locks
Front Axle Capacity 12350 lb Front Axle
Rear Axle Capacity 38000 lb Rears
Drive Axles Dana D40-155H Drive Axles
Rear Axle Ratio 2.79:1 Axle Ratio
GVWR 50350 lb GVWR
Cab Suspension Air Ride Cab
Sleeper
Sleeper Options
Cab Doors No visible damage or missing components
Mirrors No visible damage or missing components
Rear View Camera
Window Controls Rating: GOOD Both Power
Seats/Armrests Left seat cover torn, Left seat cushion damaged, Left seat armrest damaged
Seat Belts Operational
Steering Control Rating: FAIR Steering wheel switches damaged
Horn Air horn operational, Electric horn operational
Oil Pressure The gauge registers in the operating range. 75 PSI
Warning Lights Operational
Gauges Operational
Dash Components Eld mount and wiring, hook on headliner missing
Gear Selector Rating: GOOD
Brake Control Operational
Engine Brake Not operationally checked
Clutch
PTO Control
Odometer (Start) 472326 mi
Odometer 472326 mi
ECM Miles 472327 ECM mi
Indication of Additional Hours
Air Conditioner The ambient temperature is too cold to check.
Heater Operational
Sleeper Interior
Limited Function Check The main components are in place and operational as noted.

Underbody

Description Rating Details Photo
Wheels and Tires Aluminum Wheels, 295/75R22.5 Front Tires, 445/50R22.5 Super Singles Rear Tires
Lift Axles
Dual Steering Boxes
Double Frame
Air Assist Front Suspension
Rear Suspension Air Ride Suspension
Wheelbase 175 in Wheelbase
PTO Configuration
Steering Components Rating: FAIR Seepage from pump and hoses
Steer Axle Rating: GOOD
Transmission Rating: GOOD Operational, Missing dust cover on bell housing
Transmission Data Tag
Power Take Off
PTO Pump
Frame Condition Rating: GOOD
Non-Driven Drop Axle (1)
Non-Driven Drop Axle (2)
Front Drive Axle Rating: FAIR
Center Drive Axle
Rear Drive Axle Rating: FAIR
Non-Driven Rear Drop Axle
Limited Function Check The drivetrain was operational without a load.
Cab Suspension Air Bags Rating: GOOD
Suspension Springs/Hangers Rating: GOOD
Suspension Bushings Rating: FAIR
Suspension Air Bags Rating: GOOD
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition Rating: GOOD No visible damage or missing components
Brake Linings
Wet Kit Plumbing
Hydraulic Tank
Limited Function Check - Brakes The service brakes are operational, The park brake is operational.
Options Air Sliding 5th Wheel, Dual Fuel Tanks

Specialty

Description Rating Details Photo
Fifth Wheel Front of plate damaged, mounting plate damaged at rear
Auxiliary Power Unit
Winch

Tires

    • BRAKE 2632 Drum

    • TIRE 1332 Virgin Aluminum 4423

    • BRAKE 2632 Drum

    • TIRE 1432 Virgin Aluminum 4423

    • BRAKE 2632 Drum

    • TIRE N/A

    • TIRE 2532 Recap Aluminum 0724 2nd Gen

    • BRAKE 2532 Drum

    • TIRE N/A

    • TIRE 2532 Recap Aluminum 0724 2nd Gen

    • BRAKE 2332 Drum

    • TIRE N/A

    • TIRE 2532 Recap Aluminum 2124 2nd Gen

    • BRAKE 2032 Drum

    • TIRE N/A

    • TIRE 2532 Recap Aluminum 0824 2nd Gen


Legend

Excellent - New condition. No repairs necessary.   Poor - Obvious wear and/or damage. Repairs necessary.
Good - No apparent wear or damage. Functions/Operates correctly. No repairs necessary.   Not Applicable - Does not apply to this unit.
Fair - Wear and/or damage apparent. Functions, but not corectly. Repairs recommended.
