2019 International LT625DCAT Serial: 3HSDZAPR3KN543670

Features

Cummins X15 6 Cylinder 15 L Diesel 400 hp Engine, 2019 US EPA Label, Requires Diesel Exhaust Fluid, 120 gal Left Fuel Tank, Power Locks, Classic interior, 8832 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton EEO-18F112C 12 Speed Automated Transmission, 12350 lb Front Axle, 40000 lb Rears, 2.79:1 Axle Ratio, 52350 lb GVWR, Air Ride Cab, Aluminum Wheels, 295/75R22.5, Air Ride Suspension, 175 in Wheelbase, Air Sliding 5th Wheel, Lowboy Ramps

Featured Specs

Description Rating Details Photo
Odometer (Start) 263552 mi
ECM Miles 263552 ECM mi

General Appearance

Description Rating Details Photo

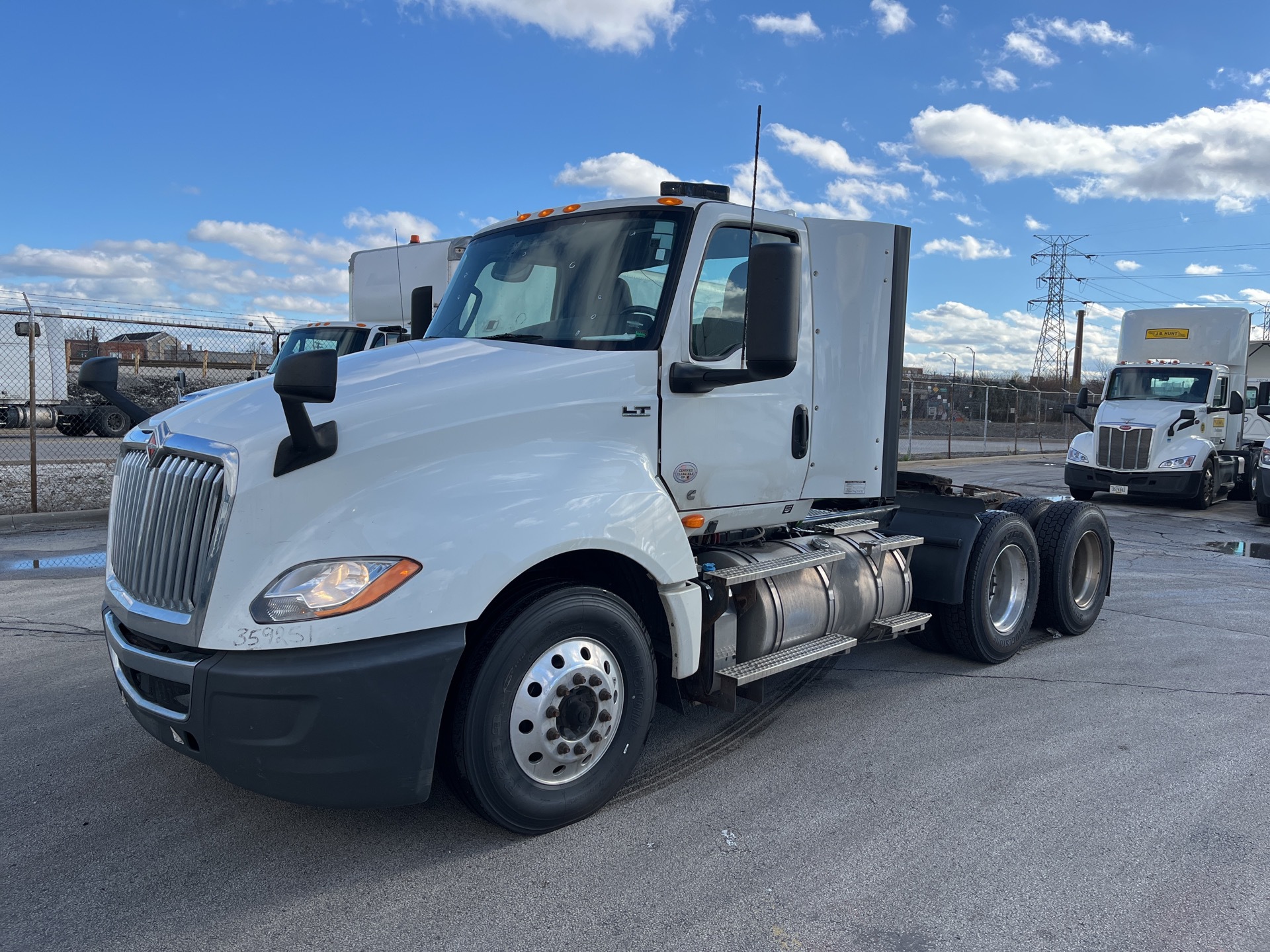

Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN 3HSDZAPR3KN543670
Second Serial Number/VIN Photo
Data Tag
Engine Oil level on Dipstick
Clean Idle Sticker No visible damage
Component Identification Tag
Motor Vehicle Safety Standards Label Yes
Truck Paint and Body Damage Grille paint damaged, Right fender paint damaged, Roof fairing missing
Front Bumper (Exterior and Inner Reinforcement) Left inner reinforcement Left inner reinforcement damaged
Color Body Paint Color:, White
Fairing
Glass Windshield chipped
Steps No visible damage or missing components
Grab Rails No visible damage or missing components
Exterior Lights No visible damage or missing components
Mud Flaps No visible damage or missing components

Model Description

Description Rating Details Photo
Model Modifier
Alternative Fuel Type
Drive Type 6x4
Special Function
Post-Model Description
Post-Features

Brakes / Tires

Description Rating Details Photo
Rear Axle

Engine

Description Rating Details Photo
Engine Details Cummins X15 6 Cylinder 15 L Diesel 400 hp Engine, 80129092
Emissions Information 2019 US EPA Label, Requires Diesel Exhaust Fluid
Positive Air Shutoff
Engine Coolant Heater
Emission Label
Engine Data Tag
A/C Compressor Operational
Blow-by (subjective visual observation)
Starter Operational
Air Compressor Operational
Fuel System Operational
Exhaust System Rating: GOOD No visible damage or missing components
Diesel Particulate Filter
Radiator Rating: GOOD No visible damage or missing components
Engine Oil Leaks Valve cover: Seepage at valve cover, Front cover: Fluid accumulation at front cover, oil filter leak
Fuel Leaks
Cooling System Leaks
Coolant Reservoir
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check After jump starting, the engine ran.

Cab

Description Rating Details Photo
Spec Details Fuel tank sizes:120 gal Left Fuel Tank Power Locks, Interior level / model:Classic interior Day Cab
Engine Hours 8832 Engine hrs
Air Conditioner Air Conditioner
Cruise Control Cruise Control
Power Windows Power Windows
Auxiliary Brake Type Engine Brake
Transmission Eaton EEO-18F112C 12 Speed Automated Transmission
Differential Locks
Front Axle Capacity 12350 lb Front Axle
Rear Axle Capacity 40000 lb Rears
Drive Axles
Rear Axle Ratio 2.79:1 Axle Ratio
GVWR 52350 lb GVWR
Cab Suspension Air Ride Cab
Sleeper
Sleeper Options
Cab Doors Left door interior panel damaged
Mirrors No visible damage or missing components
Rear View Camera
Window Controls Rating: GOOD Both Power
Seats/Armrests No visible damage or missing components
Seat Belts Operational
Steering Control Rating: FAIR Steering wheel worn
Horn Air horn operational, Electric horn operational
Oil Pressure The gauge registers in the operating range.
Warning Lights Operational
Gauges Operational
Dash Components Dash panels damaged, Vent louvers damaged
Gear Selector Rating: GOOD
Brake Control Operational
Engine Brake Not operationally checked
Clutch Engages
PTO Control
Odometer (Start) 263552 mi
Odometer 263552 mi
ECM Miles 263552 ECM mi
Indication of Additional Hours
Air Conditioner The ambient temperature is too cold to check.
Heater Operational
Sleeper Interior
Limited Function Check The main components are in place and operational as noted.

Underbody

Description Rating Details Photo
Wheels and Tires Aluminum Wheels, 295/75R22.5
Lift Axles
Dual Steering Boxes
Double Frame
Air Assist Front Suspension
Rear Suspension Air Ride Suspension
Wheelbase 175 in Wheelbase
PTO Configuration
Steering Components Rating: POOR Dripping leak from hoses
Steer Axle Rating: GOOD
Transmission Rating: GOOD Operational
Transmission Data Tag
Power Take Off
PTO Pump
Frame Condition Rating: GOOD Significant frame rust/corrosion
Non-Driven Drop Axle (1)
Non-Driven Drop Axle (2)
Front Drive Axle Rating: GOOD
Center Drive Axle
Rear Drive Axle Rating: GOOD
Non-Driven Rear Drop Axle
Limited Function Check The drivetrain was operational without a load.
Cab Suspension Air Bags Rating: GOOD
Suspension Springs/Hangers Rating: GOOD
Suspension Bushings Rating: GOOD
Suspension Air Bags Rating: GOOD
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition Rating: GOOD No visible damage or missing components
Brake Linings
Wet Kit Plumbing
Hydraulic Tank
Limited Function Check - Brakes The service brakes are operational, The park brake is operational.
Options Air Sliding 5th Wheel, Lowboy Ramps

Specialty

Description Rating Details Photo
Fifth Wheel
Auxiliary Power Unit
Winch

Tires

    • BRAKE 2232 Drum

    • TIRE 1732 New Virgin Aluminum 4623 1st Gen

    • BRAKE 2232 Drum

    • TIRE 1732 New Virgin Aluminum 4623 1st Gen

    • BRAKE 1432 Drum

    • TIRE 2732 New Virgin Aluminum 3523 1st Gen

    • TIRE 2732 New Virgin Aluminum 4623 1st Gen

    • BRAKE 1232 Drum

    • TIRE 2732 New Virgin Aluminum 4023 1st Gen

    • TIRE 2732 New Virgin Aluminum 4123 1st Gen

    • BRAKE 1232 Drum

    • TIRE 2732 New Virgin Aluminum 4623 1st Gen

    • TIRE 2732 New Virgin Aluminum 4123 1st Gen

    • BRAKE 1032 Drum

    • TIRE 2732 New Virgin Aluminum 4023 1st Gen

    • TIRE 2732 New Virgin Aluminum 4023 1st Gen


Legend

Excellent - New condition. No repairs necessary.   Poor - Obvious wear and/or damage. Repairs necessary.
Good - No apparent wear or damage. Functions/Operates correctly. No repairs necessary.   Not Applicable - Does not apply to this unit.
Fair - Wear and/or damage apparent. Functions, but not corectly. Repairs recommended.
