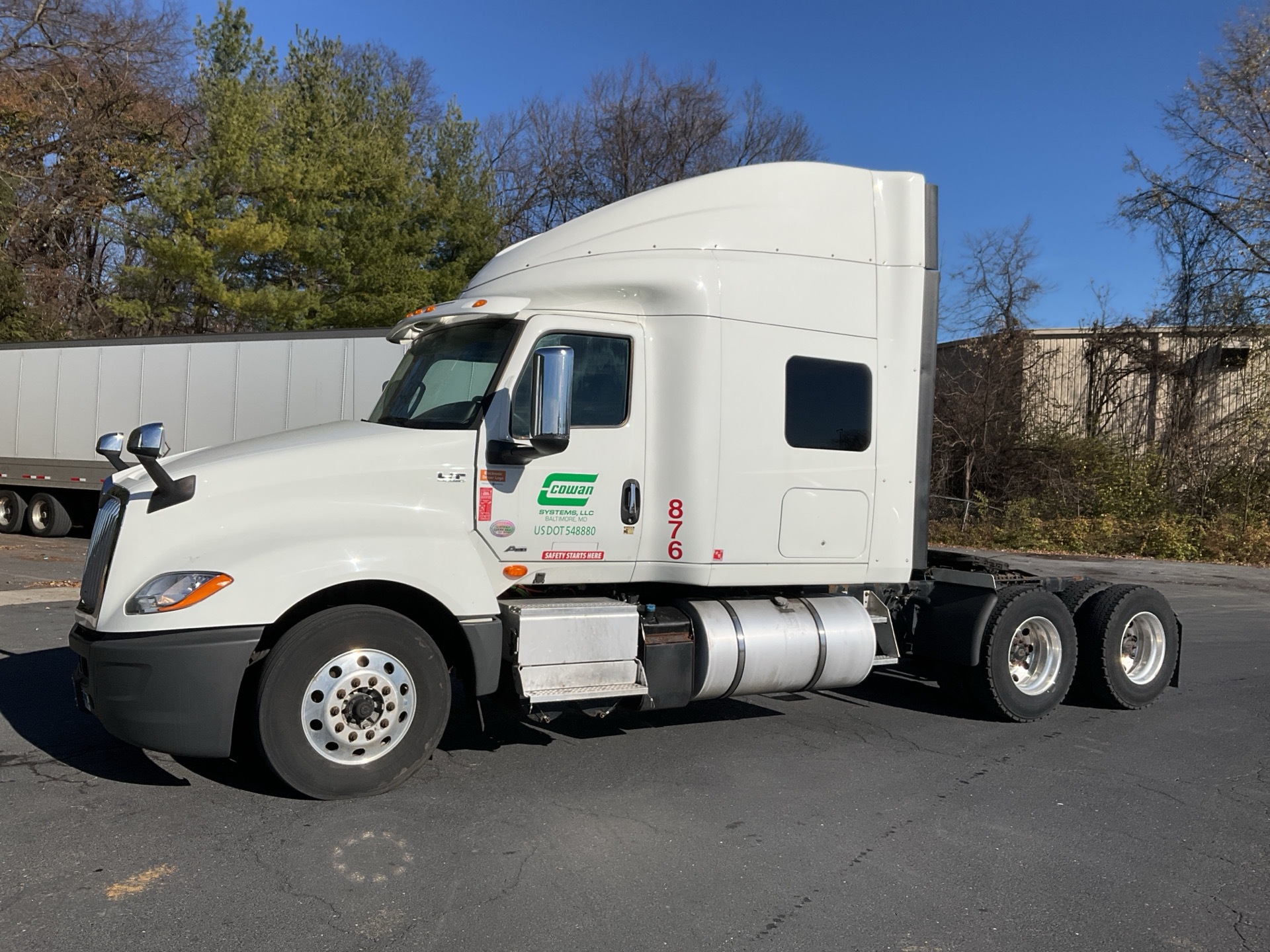

2020 International LT625 Serial: 3HSDZTZR9LN145597

Features

International A26 6 Cylinder 12.4 L Diesel 450 hp Engine, 2019 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, 120 gal Left Fuel Tank 120 gal Right Fuel Tank, Collision Mitigation System, Dual Air Seats, Power Locks, Diamond interior, Sleeper Cab, 6688 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton EEO-17F112C 12 Speed Automated Transmission, 13200 lb Front Axle, 40000 lb Rears, Dana D40-155 Drive Axles, 2.79:1 Axle Ratio, 53200 lb GVWR, Air Ride Cab, 73 in High Rise Sleeper Cab, Bunk Heater, Aluminum Wheels, 295/75R22.5, Air Ride Suspension, 228 in Wheelbase, Air Sliding 5th Wheel, Dual Fuel Tanks

Featured Specs

Description Rating Details Photo
Odometer (Start) 395931 mi
ECM Miles 181950 ECM mi

General Appearance

Description Rating Details Photo
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN 3HSDZTZR9LN145597
Second Serial Number/VIN Photo
Data Tag
Engine Oil level on Dipstick
Clean Idle Sticker No visible damage
Component Identification Tag
Motor Vehicle Safety Standards Label Yes
Truck Paint and Body Damage Cab rear damaged, Left upper cab extender cracked, Right lower cab extender damaged, Right upper cab extender cracked, Left side sleeper damaged, Right side sleeper damaged, Deidentify, Right upper cab extender trim tab missing
Front Bumper (Exterior and Inner Reinforcement) Left exterior Left exterior damaged
Color Body Paint Color:, White
Fairing Roof Air Fairing
Glass Scratches on windshield from wipers
Steps No visible damage or missing components
Grab Rails No visible damage or missing components
Exterior Lights No visible damage or missing components
Mud Flaps No visible damage or missing components

Model Description

Description Rating Details Photo
Model Modifier
Alternative Fuel Type
Drive Type 6x4
Special Function
Post-Model Description
Post-Features

Brakes / Tires

Description Rating Details Photo
Rear Axle

Engine

Description Rating Details Photo
Engine Details International A26 6 Cylinder 12.4 L Diesel 450 hp Engine, 124KM2Y4520402
Emissions Information 2019 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid
Positive Air Shutoff
Engine Coolant Heater
Emission Label
Engine Data Tag
A/C Compressor In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Starter Operational
Air Compressor Operational, Dripping leak
Fuel System Operational
Exhaust System Rating: GOOD No visible damage or missing components
Diesel Particulate Filter
Radiator Rating: GOOD No visible damage or missing components
Engine Oil Leaks Front cover: Dripping leak at front cover, Air compressor
Fuel Leaks No dripping leaks
Cooling System Leaks No dripping leaks
Coolant Reservoir
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check The engine started and ran.

Cab

Description Rating Details Photo
Spec Details Fuel tank sizes:120 gal Left Fuel Tank 120 gal Right Fuel Tank Collision Mitigation System, Dual Air Seats, Power Locks, Interior level / model:Diamond interior Sleeper Cab
Engine Hours 6688 Engine hrs
Air Conditioner Air Conditioner
Cruise Control Cruise Control
Power Windows Power Windows
Auxiliary Brake Type Engine Brake
Transmission Eaton EEO-17F112C 12 Speed Automated Transmission
Differential Locks
Front Axle Capacity 13200 lb Front Axle
Rear Axle Capacity 40000 lb Rears
Drive Axles Dana D40-155 Drive Axles
Rear Axle Ratio 2.79:1 Axle Ratio
GVWR 53200 lb GVWR
Cab Suspension Air Ride Cab
Sleeper 73 in High Rise Sleeper Cab
Sleeper Options Bunk Heater, Auxiliary Power Unit No
Cab Doors No visible damage or missing components
Mirrors No visible damage or missing components
Rear View Camera
Window Controls Rating: GOOD Both Power
Seats/Armrests Left seat cover torn, Left seat cushion damaged, Left seat armrest damaged, Mismatched seats
Seat Belts Operational
Steering Control Rating: FAIR Steering wheel switches damaged
Horn Air horn operational, Electric horn operational
Oil Pressure The gauge registers in the operating range.
Warning Lights Operational
Gauges Operational, Cluster lens cracked
Dash Components Dash panels damaged, Eld mount and wiring, adhesive on dash
Gear Selector Rating: GOOD
Brake Control Operational
Engine Brake Not operationally checked
Clutch
PTO Control
Odometer (Start) 395931 mi
Odometer 395932 mi
ECM Miles 181950 ECM mi
Indication of Additional Hours Ecm vs cluster reading off
Air Conditioner The ambient temperature is too cold to check.
Heater Operational
Sleeper Interior Sleeper window covers missing, Drawer missing
Limited Function Check The main components are in place and operational as noted.

Underbody

Description Rating Details Photo
Wheels and Tires Aluminum Wheels, 295/75R22.5
Lift Axles
Dual Steering Boxes
Double Frame
Air Assist Front Suspension
Rear Suspension Air Ride Suspension
Wheelbase 228 in Wheelbase
PTO Configuration
Steering Components Rating: GOOD
Steer Axle Rating: FAIR Shock leaking
Transmission Rating: GOOD Operational
Transmission Data Tag
Power Take Off
PTO Pump
Frame Condition Rating: GOOD
Non-Driven Drop Axle (1)
Non-Driven Drop Axle (2)
Front Drive Axle Rating: FAIR Collection on bottom
Center Drive Axle Rating: FAIR Seepage from weld repair
Rear Drive Axle Rating: FAIR Weld repair
Non-Driven Rear Drop Axle
Limited Function Check The drivetrain was operational without a load.
Cab Suspension Air Bags Rating: FAIR Shocks leaking, leveling valve leaks Down
Suspension Springs/Hangers Rating: FAIR Spring bushings wearing into brackets
Suspension Bushings Rating: FAIR Spring bushings worn out
Suspension Air Bags Rating: GOOD
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires Outer tire has chunks missing
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition Rating: GOOD No visible damage or missing components
Brake Linings
Wet Kit Plumbing
Hydraulic Tank
Limited Function Check - Brakes The service brakes are operational, The park brake is operational.
Options Air Sliding 5th Wheel, Dual Fuel Tanks

Specialty

Description Rating Details Photo
Fifth Wheel
Auxiliary Power Unit
Winch

Tires

    • BRAKE 2132 Drum

    • TIRE 1332 Virgin 0223

    • BRAKE 2132 Drum

    • TIRE 1432 Virgin 0223

    • BRAKE 1832 Drum

    • TIRE 2332 Recap 1023 2nd Gen

    • TIRE 2132 Recap 1023 2nd Gen

    • BRAKE 1832 Drum

    • TIRE 2032 Recap 1023 2nd Gen

    • TIRE 2032 Recap 1023 2nd Gen

    • BRAKE 2632 Drum

    • TIRE 2032 Recap 1023 2nd Gen

    • TIRE 2032 Recap 1023 2nd Gen

    • BRAKE 2632 Drum

    • TIRE 832 Virgin 1022 1st Gen

    • TIRE 1332 Recap 0122 2nd Gen


Legend

Excellent - New condition. No repairs necessary.   Poor - Obvious wear and/or damage. Repairs necessary.
Good - No apparent wear or damage. Functions/Operates correctly. No repairs necessary.   Not Applicable - Does not apply to this unit.
Fair - Wear and/or damage apparent. Functions, but not corectly. Repairs recommended.
