2020 International LT625 Serial: 3HCDZAPR3LL607795

Features

Cummins X15 6 Cylinder 15 L Ultra Low Sulfur Diesel 400 hp Engine, 2019 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, 120 gal Left Fuel Tank, Collision Mitigation System, Power Locks, Classic interior, 10011 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton Fuller EEO-17F112C 12 Speed Automated Transmission, 12350 lb Front Axle, 40000 lb Rears, 2.79:1 Axle Ratio, 52350 lb GVWR, Air Ride Cab, Aluminum Wheels, 295/75R22.5, Air Ride Suspension, 175 in Wheelbase, Air Sliding 5th Wheel, Lowboy Ramps

Featured Specs

Description Rating Details Photo
Odometer (Start) 369326 mi
ECM Miles 369335 ECM mi

General Appearance

Description Rating Details Photo

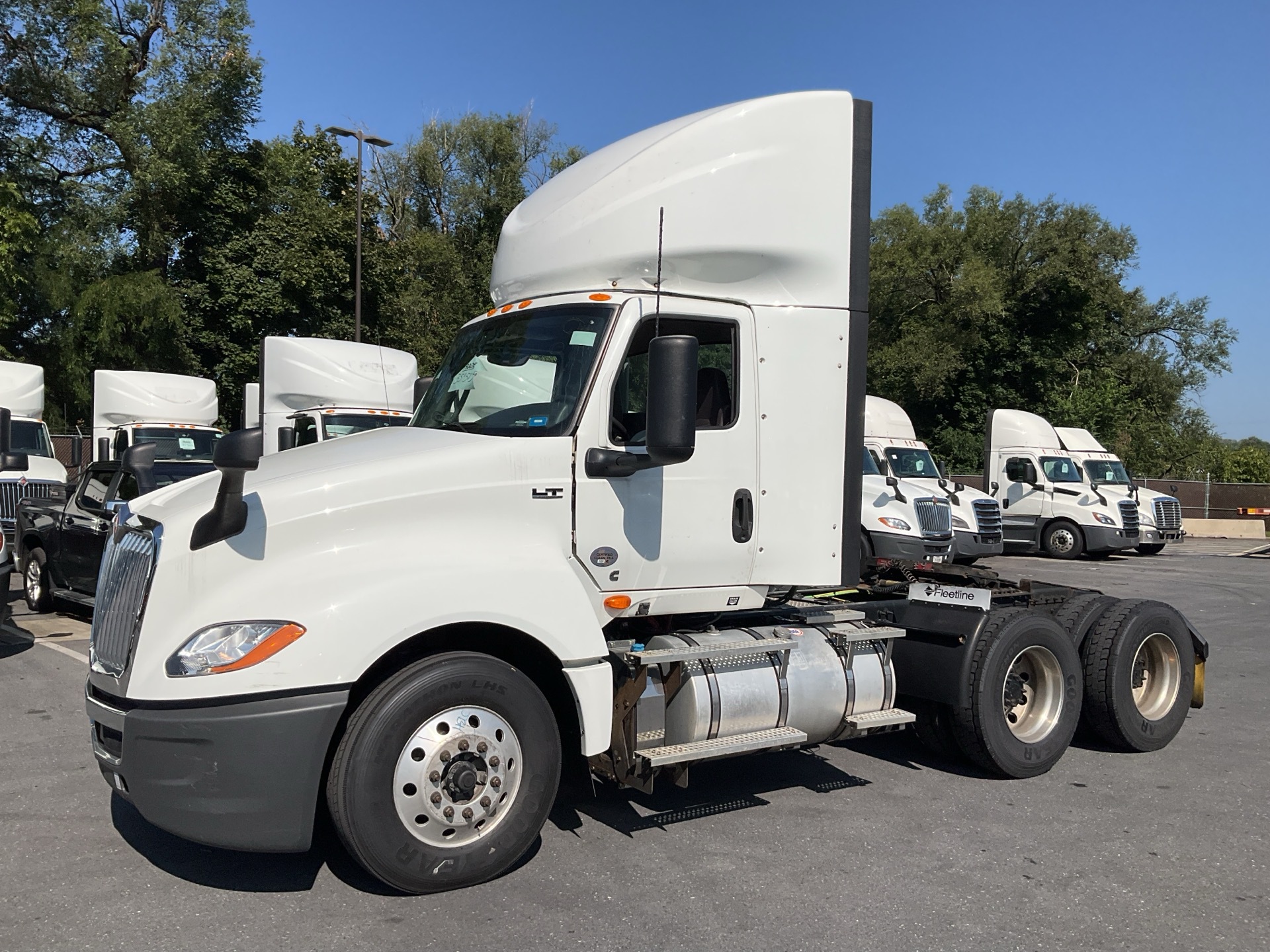

Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN 3HCDZAPR3LL607795
Second Serial Number/VIN Photo
Data Tag
Engine Oil level on Dipstick
Clean Idle Sticker No visible damage
Component Identification Tag
Motor Vehicle Safety Standards Label Yes
Truck Paint and Body Damage Left fender damaged, Right fender damaged, Left door paint damaged, Cab rear damaged, Roof fairing paint damaged
Front Bumper (Exterior and Inner Reinforcement) Left exterior Left exterior damaged Right exterior Right exterior damaged Right inner reinforcement Right inner reinforcement damaged
Color Body Paint Color:, White
Fairing Roof Air Fairing
Glass Windshield chipped
Steps Left entry step damaged, Right entry step damaged, Left rear step damaged
Grab Rails No visible damage or missing components
Exterior Lights No visible damage or missing components
Mud Flaps No visible damage or missing components

Model Description

Description Rating Details Photo
Model Modifier
Alternative Fuel Type
Drive Type 6x4
Special Function
Post-Model Description
Post-Features

Brakes / Tires

Description Rating Details Photo
Rear Axle

Engine

Description Rating Details Photo
Engine Details Cummins X15 6 Cylinder 15 L Ultra Low Sulfur Diesel 400 hp Engine, 80186016
Emissions Information 2019 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid
Positive Air Shutoff
Engine Coolant Heater
Emission Label
Engine Data Tag
A/C Compressor Operational
Blow-by (subjective visual observation)
Starter Operational
Air Compressor Operational
Fuel System Operational
Exhaust System Rating: GOOD No visible damage or missing components
Diesel Particulate Filter
Radiator Rating: GOOD No visible damage or missing components
Engine Oil Leaks Front cover: Fluid accumulation at front cover, Oil pan: Fluid accumulation at oil pan
Fuel Leaks No dripping leaks
Cooling System Leaks No dripping leaks
Coolant Reservoir
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check The engine started and ran.

Cab

Description Rating Details Photo
Spec Details Fuel tank sizes:120 gal Left Fuel Tank Collision Mitigation System, Power Locks, Interior level / model:Classic interior Day Cab
Engine Hours 10011 Engine hrs
Air Conditioner Air Conditioner
Cruise Control Cruise Control
Power Windows Power Windows
Auxiliary Brake Type Engine Brake
Transmission Eaton Fuller EEO-17F112C 12 Speed Automated Transmission
Differential Locks
Front Axle Capacity 12350 lb Front Axle
Rear Axle Capacity 40000 lb Rears
Drive Axles
Rear Axle Ratio 2.79:1 Axle Ratio
GVWR 52350 lb GVWR
Cab Suspension Air Ride Cab
Sleeper
Sleeper Options
Cab Doors No visible damage or missing components
Mirrors Right side shell damaged, Left side hood mirror damaged
Rear View Camera
Window Controls Rating: GOOD Both Power
Seats/Armrests Left seat cushion damaged, Left seat armrest damaged
Seat Belts Operational
Steering Control Rating: GOOD
Horn Air horn operational, Electric horn operational
Oil Pressure The fault indicator shuts off after the engine oil pressure rises. 45 PSI
Warning Lights Operational
Gauges Operational
Dash Components Top dash trim heavy scratches, eld mount and hole, under steering wheel trim loose
Gear Selector Rating: GOOD
Brake Control Operational
Engine Brake Not operationally checked
Clutch
PTO Control
Odometer (Start) 369326 mi
Odometer 369326 mi
ECM Miles 369335 ECM mi
Indication of Additional Hours
Air Conditioner Operational
Heater Operational
Sleeper Interior
Limited Function Check The main components are in place and operational as noted.

Underbody

Description Rating Details Photo
Wheels and Tires Aluminum Wheels, 295/75R22.5
Lift Axles
Dual Steering Boxes
Double Frame
Air Assist Front Suspension
Rear Suspension Air Ride Suspension
Wheelbase 175 in Wheelbase
PTO Configuration
Steering Components Rating: GOOD
Steer Axle Rating: GOOD
Transmission Rating: GOOD Operational
Transmission Data Tag
Power Take Off
PTO Pump
Frame Condition Rating: FAIR Left lowboy ramp missing bolts
Non-Driven Drop Axle (1)
Non-Driven Drop Axle (2)
Front Drive Axle Rating: FAIR Leak at input yoke nut
Center Drive Axle Rating: GOOD
Rear Drive Axle Rating: GOOD
Non-Driven Rear Drop Axle
Limited Function Check The drivetrain was operational without a load.
Cab Suspension Air Bags Rating: GOOD
Suspension Springs/Hangers Rating: FAIR Left front and rear drive axle spring bushing rubbing mounts, rear shocks leaking
Suspension Bushings Rating: FAIR Drive axle torque rod bushings worn
Suspension Air Bags Rating: GOOD
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition No visible damage or missing components
Brake Linings
Wet Kit Plumbing
Hydraulic Tank
Limited Function Check - Brakes The service brakes are operational, The park brake is operational.
Options Air Sliding 5th Wheel, Lowboy Ramps

Specialty

Description Rating Details Photo
Fifth Wheel
Auxiliary Power Unit
Winch

Tires

    • BRAKE 1932 Drum

    • TIRE 1832 New Virgin Aluminum

    • BRAKE 1932 Drum

    • TIRE 1832 New Virgin Aluminum

    • BRAKE 1732 Drum

    • TIRE 2432 New Virgin Aluminum

    • TIRE 2432 New Virgin Aluminum

    • BRAKE 1732 Drum

    • TIRE 2432 New Virgin Aluminum

    • TIRE 2432 New Virgin Aluminum

    • BRAKE 1732 Drum

    • TIRE 2432 New Virgin Aluminum

    • TIRE 2432 New Virgin Aluminum

    • BRAKE 1732 Drum

    • TIRE 2432 New Virgin Aluminum

    • TIRE 2432 New Virgin Aluminum


Legend

Excellent - New condition. No repairs necessary.   Poor - Obvious wear and/or damage. Repairs necessary.
Good - No apparent wear or damage. Functions/Operates correctly. No repairs necessary.   Not Applicable - Does not apply to this unit.
Fair - Wear and/or damage apparent. Functions, but not corectly. Repairs recommended.
