2020 International LT625 Serial: 3HCDZTZR1LL287286

Features

International A26 6 Cylinder 12.4 L Diesel 450 hp Engine, 2019 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, 70 gal Left Fuel Tank 70 gal Right Fuel Tank, Collision Mitigation System, Power Locks, Classic interior, 13101 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton EEO-17F112C 12 Speed Automated Transmission, 12350 lb Front Axle, 38000 lb Rears, Dana D40-155H Drive Axles, 2.79:1 Axle Ratio, 50350 lb GVWR, Air Ride Cab, Aluminum Wheels, 275/80R22.5 Front Tires, 445/50R22.5 Super Singles Rear Tires, Air Ride Suspension, 175 in Wheelbase, Air Sliding 5th Wheel, Dual Fuel Tanks

Featured Specs

Description Rating Details Photo
Odometer (Start) 469541 mi
ECM Miles 469548 ECM mi

General Appearance

Description Rating Details Photo

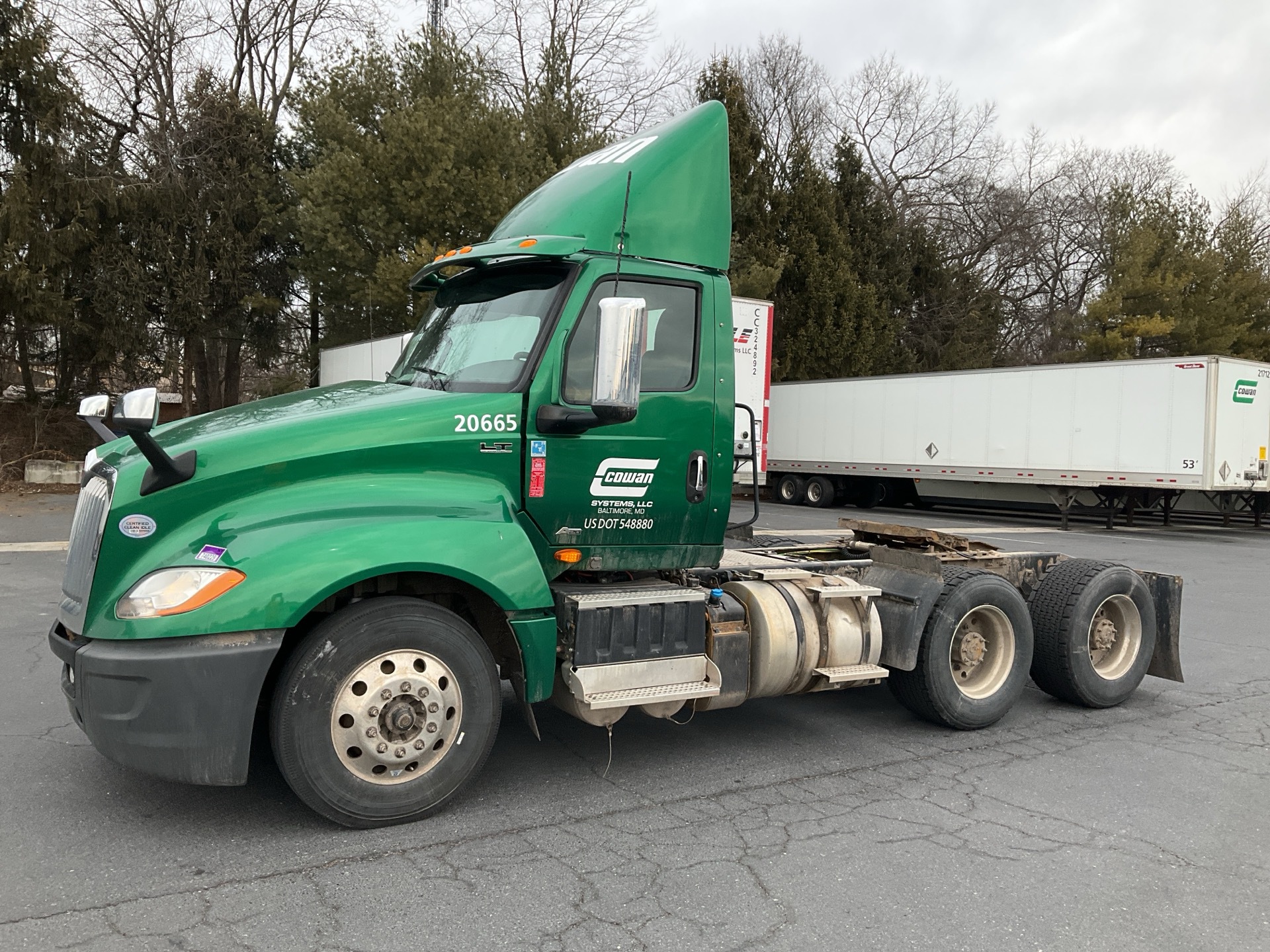

Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN 3HCDZTZR1LL287286
Second Serial Number/VIN Photo
Data Tag
Engine Oil level on Dipstick
Clean Idle Sticker No visible damage
Component Identification Tag
Motor Vehicle Safety Standards Label Yes
Truck Paint and Body Damage Left fender paint damaged, Right fender paint damaged, Cab rear paint damaged, Deidentify
Front Bumper (Exterior and Inner Reinforcement) Center exterior Center exterior damaged Right exterior Right exterior damaged
Color Body Paint Color:, Green
Fairing Roof Air Fairing
Glass Windshield chipped
Steps No visible damage or missing components
Grab Rails No visible damage or missing components
Exterior Lights No visible damage or missing components
Mud Flaps No visible damage or missing components

Model Description

Description Rating Details Photo
Model Modifier
Alternative Fuel Type
Drive Type 6x4
Special Function
Post-Model Description
Post-Features

Brakes / Tires

Description Rating Details Photo
Rear Axle

Engine

Description Rating Details Photo
Engine Details International A26 6 Cylinder 12.4 L Diesel 450 hp Engine, 124KM2Y4517629
Emissions Information 2019 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid
Positive Air Shutoff
Engine Coolant Heater
Emission Label
Engine Data Tag
A/C Compressor In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Starter Operational
Air Compressor Operational, Dripping leak
Fuel System Operational
Exhaust System Rating: GOOD No visible damage or missing components
Diesel Particulate Filter
Radiator Rating: GOOD No visible damage or missing components
Engine Oil Leaks Dripping leak at front cover, Seepage at oil pan, air compressor mounting surface
Fuel Leaks No dripping leaks
Cooling System Leaks turbo actuator
Coolant Reservoir
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check The engine started and ran.

Cab

Description Rating Details Photo
Spec Details Fuel tank sizes:70 gal Left Fuel Tank 70 gal Right Fuel Tank Collision Mitigation System, Power Locks, Interior level / model:Classic interior Day Cab
Engine Hours 13101 Engine hrs
Air Conditioner Air Conditioner
Cruise Control Cruise Control
Power Windows Power Windows
Auxiliary Brake Type Engine Brake
Transmission Eaton EEO-17F112C 12 Speed Automated Transmission
Differential Locks
Front Axle Capacity 12350 lb Front Axle
Rear Axle Capacity 38000 lb Rears
Drive Axles Dana D40-155H Drive Axles
Rear Axle Ratio 2.79:1 Axle Ratio
GVWR 50350 lb GVWR
Cab Suspension Air Ride Cab
Sleeper
Sleeper Options
Cab Doors No visible damage or missing components
Mirrors Left side shell damaged
Rear View Camera
Window Controls Rating: GOOD Both Power
Seats/Armrests Left seat armrest damaged
Seat Belts Operational
Steering Control Rating: FAIR Steering wheel worn
Horn Air horn operational, Electric horn operational
Oil Pressure The gauge registers in the operating range. 75 PSI
Warning Lights Operational
Gauges Operational
Dash Components Dash panels damaged, Eld mount and wiring, adhesive on dash panels, gauge cluster cracked, rear cab panel damaged
Gear Selector Rating: GOOD
Brake Control Operational
Engine Brake Not operationally checked
Clutch
PTO Control
Odometer (Start) 469541 mi
Odometer 469541 mi
ECM Miles 469548 ECM mi
Indication of Additional Hours
Air Conditioner The ambient temperature is too cold to check.
Heater Operational
Sleeper Interior
Limited Function Check The main components are in place and operational as noted.

Underbody

Description Rating Details Photo
Wheels and Tires Aluminum Wheels, 275/80R22.5 Front Tires, 445/50R22.5 Super Singles Rear Tires
Lift Axles
Dual Steering Boxes
Double Frame
Air Assist Front Suspension
Rear Suspension Air Ride Suspension
Wheelbase 175 in Wheelbase
PTO Configuration
Steering Components Rating: FAIR Leak from steering pump
Steer Axle Rating: GOOD
Transmission Rating: GOOD Operational
Transmission Data Tag
Power Take Off
PTO Pump
Frame Condition Rating: FAIR Left rear corner bent down
Non-Driven Drop Axle (1)
Non-Driven Drop Axle (2)
Front Drive Axle Rating: GOOD Weld repair on back of housing
Center Drive Axle
Rear Drive Axle Rating: GOOD Weld repair on rear of housing
Non-Driven Rear Drop Axle
Limited Function Check The drivetrain was operational without a load.
Cab Suspension Air Bags Rating: FAIR Cab leaks down, shocks leaking
Suspension Springs/Hangers Rating: FAIR Shocks leaking
Suspension Bushings Rating: FAIR Spring bushings worn on front drive axle
Suspension Air Bags Rating: GOOD
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition Rating: GOOD No visible damage or missing components
Brake Linings
Wet Kit Plumbing
Hydraulic Tank
Limited Function Check - Brakes The service brakes are operational, The park brake is operational.
Options Air Sliding 5th Wheel, Dual Fuel Tanks

Specialty

Description Rating Details Photo
Fifth Wheel Front of plate damaged, rear of mounting plate bent
Auxiliary Power Unit
Winch

Tires

    • BRAKE 2232 Drum

    • TIRE 1932 Virgin Aluminum 2724

    • BRAKE 2232 Drum

    • TIRE 2032 Virgin Aluminum 2924

    • BRAKE 2432 Drum

    • TIRE N/A

    • TIRE 2532 Recap Aluminum 2324 2nd Gen

    • BRAKE 2432 Drum

    • TIRE N/A

    • TIRE 2432 Recap Aluminum 2324 2nd Gen

    • BRAKE 2432 Drum

    • TIRE N/A

    • TIRE 2332 Recap Aluminum 4622 3rd Gen

    • BRAKE 2432 Drum

    • TIRE N/A

    • TIRE 2432 Recap Aluminum 2724 3rd Gen


Legend

Excellent - New condition. No repairs necessary.   Poor - Obvious wear and/or damage. Repairs necessary.
Good - No apparent wear or damage. Functions/Operates correctly. No repairs necessary.   Not Applicable - Does not apply to this unit.
Fair - Wear and/or damage apparent. Functions, but not corectly. Repairs recommended.
