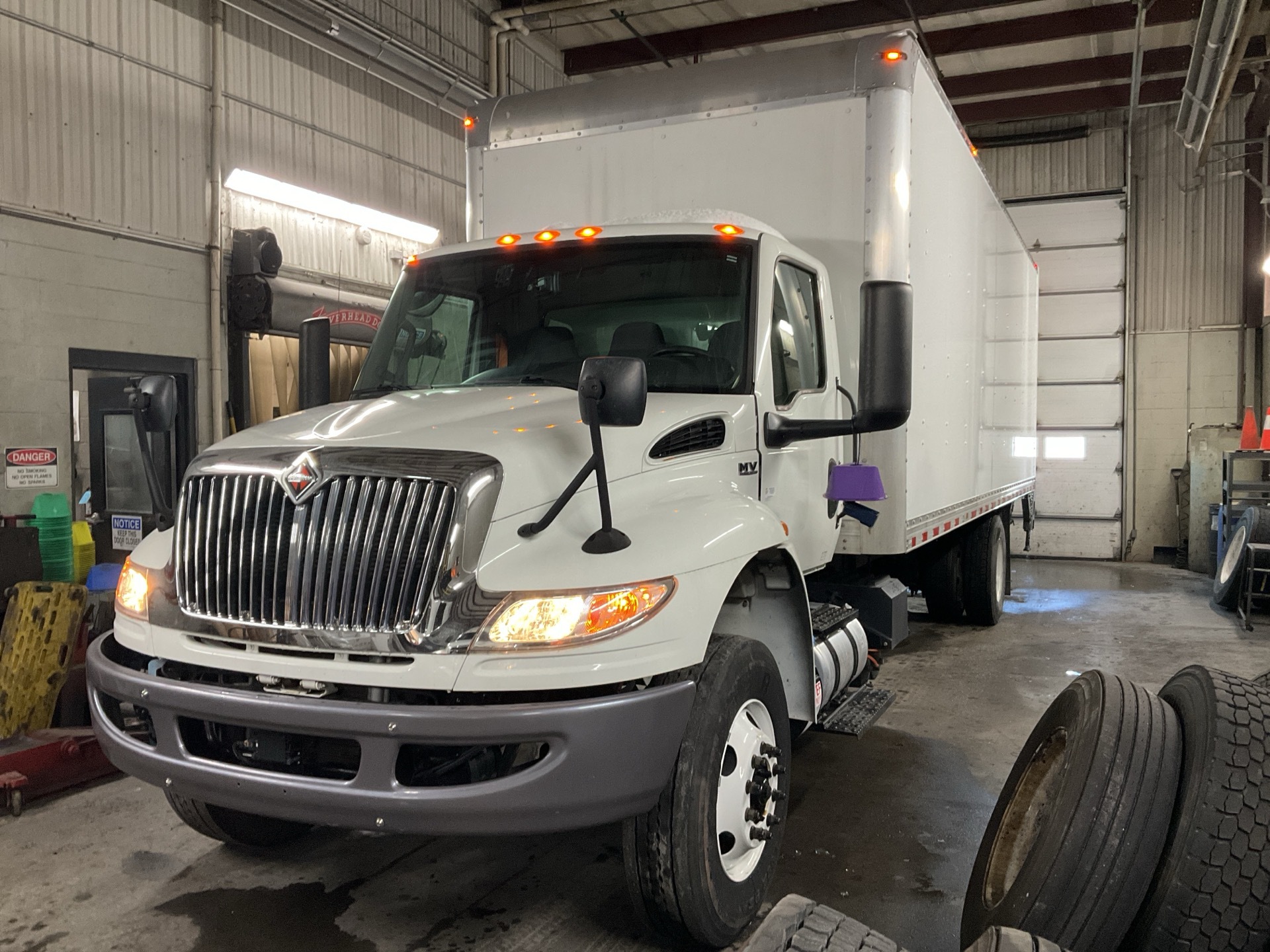

2022 International MV607 Serial: 3HAEUMMN2NL169207

Features

Cummins B6.7 240 6 Cylinder 6.7 L Diesel 240 hp Engine, 2021 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, 1912 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Exhaust Brake, Allison 2500 6-Speed Automatic Transmission, 10000 lb Front Axle, 19000 lb Rears, 5.57:1 Axle Ratio, 29000 lb GVWR, Air Ride Cab, 295/75R22.5, Air Ride Suspension, 272 in Wheelbase, Dual Fuel Tanks, Supreme 26 ft x 102 in Wide x 97 in High Body

Featured Specs

Description Rating Details Photo
Sleeper
Odometer (Start) 65654 mi
ECM Miles 65653 ECM mi

General Appearance

Description Rating Details Photo
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN 3HAEUMMN2NL169207
Second Serial Number/VIN Photo
Data Tag
Engine Oil level on Dipstick
Clean Idle Sticker No visible damage
Component Identification Tag
Motor Vehicle Safety Standards Label Yes
Truck Paint and Body Damage No visible damage or missing components
Front Bumper (Exterior and Inner Reinforcement) Paint damaged
Color Body Paint Color:, White
Fairing
Glass No visible damage or missing components
Steps Left entry step damaged
Grab Rails No visible damage or missing components Right rear
Exterior Lights No visible damage or missing components
Mud Flaps No visible damage or missing components

Model Description

Description Rating Details Photo
Trim Package
Model Modifier
Drive Type 4x2
Cab Type
Rotator
Post-Model Description
Post-Features

Brakes / Tires

Description Rating Details Photo
Rear Axle
Rear Axle

Engine

Description Rating Details Photo
Engine Details Cummins B6.7 240 6 Cylinder 6.7 L Diesel 240 hp Engine, 74750255
Emissions Information 2021 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid
Positive Air Shutoff
Engine Coolant Heater
Emission Label
Engine Data Tag
A/C Compressor In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Starter Operational
Air Compressor Operational
Fuel System Operational
Exhaust System Rating: GOOD No visible damage or missing components
Diesel Particulate Filter
Radiator Rating: GOOD No visible damage or missing components
Engine Oil Leaks No visible leaks
Fuel Leaks No dripping leaks
Cooling System Leaks No dripping leaks
Coolant Reservoir
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check The engine started and ran.

Cab

Description Rating Details Photo
Engine Hours 1912 Engine hrs
Air Conditioner Air Conditioner
Cruise Control Cruise Control
Power Windows Power Windows
Auxiliary Brake Type Exhaust Brake
Transmission Details Allison 2500 6-Speed Automatic Transmission
Differential Locks
Front Axle Capacity 10000 lb Front Axle
Rear Axle Capacity 19000 lb Rears
Drive Axles
Rear Axle Ratio 5.57:1 Axle Ratio
GVWR 29000 lb GVWR
Cab Suspension Air Ride Cab
Sleeper
Sleeper Options
Cab Doors No visible damage or missing components
Mirrors No visible damage or missing components
Rear View Camera Camera operates as intended
Window Controls Rating: GOOD Both Power
Seats/Armrests No visible damage or missing components
Seat Belts Operational
Steering Control Rating: GOOD
Horn Air horn operational, Electric horn operational
Oil Pressure The gauge registers in the operating range. 45 PSI
Warning Lights Operational
Gauges Operational
Dash Components No visible damage or missing components
Gear Selector Rating: GOOD
Brake Control Operational
Engine Brake Not operationally checked
Clutch
PTO Control
Odometer (Start) 65654 mi
Odometer 65654 mi
ECM Miles 65653 ECM mi
Indication of Additional Hours
Air Conditioner Not operationally checked
Heater Operational
Sleeper Interior
Limited Function Check The main components are in place and operational as noted.

Underbody

Description Rating Details Photo
Wheels and Tires 295/75R22.5
Lift Axles
Dual Steering Boxes
Double Frame
Air Assist Front Suspension
Rear Suspension Air Ride Suspension
Wheelbase 272 in Wheelbase
PTO Configuration
Steering Components Rating: GOOD
Steer Axle Rating: GOOD
Transmission Rating: GOOD
Transmission Data Tag
Power Take Off
PTO Pump
Frame Condition Rating: GOOD
Non-Driven Drop Axle (1)
Non-Driven Drop Axle (2)
Front Drive Axle
Center Drive Axle
Rear Drive Axle Rating: GOOD
Non-Driven Rear Drop Axle
Limited Function Check The drivetrain was operational without a load.
Cab Suspension Air Bags Rating: GOOD
Suspension Springs/Hangers Rating: GOOD
Suspension Bushings Rating: GOOD
Suspension Air Bags Rating: GOOD
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition Rating: GOOD No visible damage or missing components
Brake Linings
Wet Kit Plumbing
Hydraulic Tank
Limited Function Check - Brakes The service brakes are operational, The park brake is operational.
Options Dual Fuel Tanks

Configuration

Description Rating Details Photo
Cargo Box Details Supreme 26 ft x 102 in Wide x 97 in High Body
Liftgate
Rear Coupling

Cargo Box

Description Rating Details Photo
Van Body Rating: FAIR Water intrusion at front corners, dents on right side
Support Frame Rating: GOOD
Liftgate Rating: FAIR Waltco, HLF-30 -, 3000 lb. Capacity, The liftgate opens, raises, and lowers., Rear deck damaged
Door Condition Rating: FAIR Roll-up door, Operational, Bottom panel damaged, side door frame welds cracked at top corners, front lower corner of door frame damaged
Pull-Out Ramp
Pintle Hitch
External Electrical / Air Connections
Refrigeration Unit

Tires

    • BRAKE 2432 Drum

    • TIRE 1732 Virgin Steel 4620

    • BRAKE 2432 Drum

    • TIRE 1732 Virgin Steel 4620

    • BRAKE 2232 Drum

    • TIRE 1632 Recap Steel 2823 2nd Gen

    • TIRE 1832 Recap Steel 2nd Gen

    • BRAKE 2232 Drum

    • TIRE 1732 Recap Steel 1623 2nd Gen

    • TIRE 1832 Recap Steel 1623 2nd Gen


Legend

Excellent - New condition. No repairs necessary.   Poor - Obvious wear and/or damage. Repairs necessary.
Good - No apparent wear or damage. Functions/Operates correctly. No repairs necessary.   Not Applicable - Does not apply to this unit.
Fair - Wear and/or damage apparent. Functions, but not corectly. Repairs recommended.
